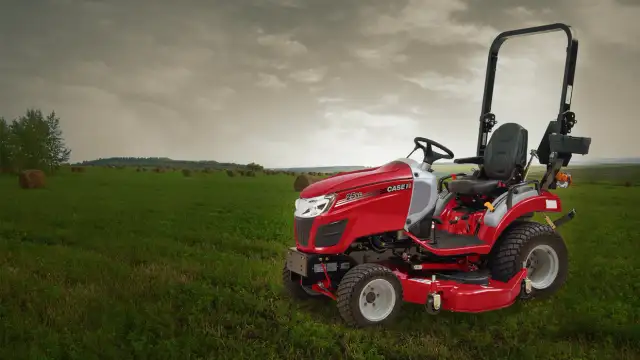

The Farmall 25SC, part of the Farmall Subcompact Series, is a powerful subcompact tractor that combines efficiency and versatility. With a 24.7 horsepower engine and a robust hydraulic system, it is well-suited for a variety of tasks, including mowing and snow removal. Its compact design and impressive lift capacity make it ideal for small-scale farming operations, ensuring ease of handling and adaptability.

Key Things to Know About the Tractor

Powerful yet Environmentally Considerate:
The 24.7 horsepower engine, meeting Tier 4 B/Final emissions standards, demonstrates a commitment to powerful yet environmentally considerate performance. The additional PTO horsepower of 17.2 extends its capability to operate a wide range of implements effectively.

User-Friendly and Versatile:
Its user-friendly 2-Range Hydrostatic Synchro Shuttle transmission and the option for mid-PTO at 2500 RPM ensure that the Farmall 25SC is versatile enough to tackle a variety of tasks, from mowing to snow removal, with simplicity and ease.

Designed for Versatility and Efficiency:
With its robust hydraulic system and 3-point hitch lift capacity, alongside compact dimensions, the Farmall 25SC is purposefully designed for efficiency and versatility, making it an invaluable asset for any small-scale farming operation or hobby farm.

Features

Engine Power and Efficiency Reinforced:
The Farmall 25SC boasts a 3-cylinder, Tier 4 B/Final, water-cooled, indirect-injection engine with a powerful output of 24.7 horsepower, paired with a PTO horsepower of 17.2. Operating at a rated 3000 RPM and a displacement of 1.26 L (77.3 cu. in.), this engine exemplifies the optimal balance between substantial performance and eco-friendly operations.

Responsive and Smooth Transmission:
Featuring a 2-Range Hydrostatic Synchro Shuttle transmission with a wet clutch as standard, the Farmall 25SC provides seamless and responsive control, ensuring ease of operation and improved efficiency for a variety of tasks.

Optimized Hydraulic System:
With an open center hydraulic system that delivers a flow rate of 4.6 gallons per minute, the Farmall 25SC is equipped for efficient operation of hydraulic implements, enhancing the tractor’s versatility and performance.

Versatility Extended with Mid-PTO:
Adding to its utility, the Farmall 25SC includes an optional mid-PTO with a speed of 2500 RPM, alongside the standard rear PTO speed of 540 RPM. This feature broadens the tractor’s range of compatible implements, allowing for more specialized tasks.

Robust Lifting Capability for Various Implements:
The tractor is equipped with a 3-point hitch featuring a lift capacity of 728 pounds (330 kg) at 24 inches behind the pin. This capability ensures the Farmall 25SC can handle a multitude of implements, affirming its adaptability and utility in diverse applications.

Compact Design for Subcompact Efficiency:
Designed with a wheelbase of 56 inches and an overall length of 97 inches, the Farmall 25SC emphasizes subcompact efficiency. Weights are 1884 pounds for cab models and 1444 pounds for non-cab models, facilitating easy handling and storage.

Get the Traction You Need: Front Axle

The Farmall subcompact comes standard with four-wheel drive, letting you tackle even the toughest jobs with ease.

Handle All Your Jobs with Ease: PTO

Specifications:

PTO HP: 17.2
PTO Speed: 540
PTO Type: Independent Electro-hydraulic engagement
Mid-PTO: Standard
Mid-PTO speed: 2,500 RPM

Lift Capacity Suited to Multiple Jobs: Hitch

Specifications 3-point hitch: chain type stabilizers/fixed link ends 3-point lift capacity @ ball ends: 992 lb. 3-point lift capacity @24 inches behind ball ends: 728 lb. 3-point linkage category: 1
