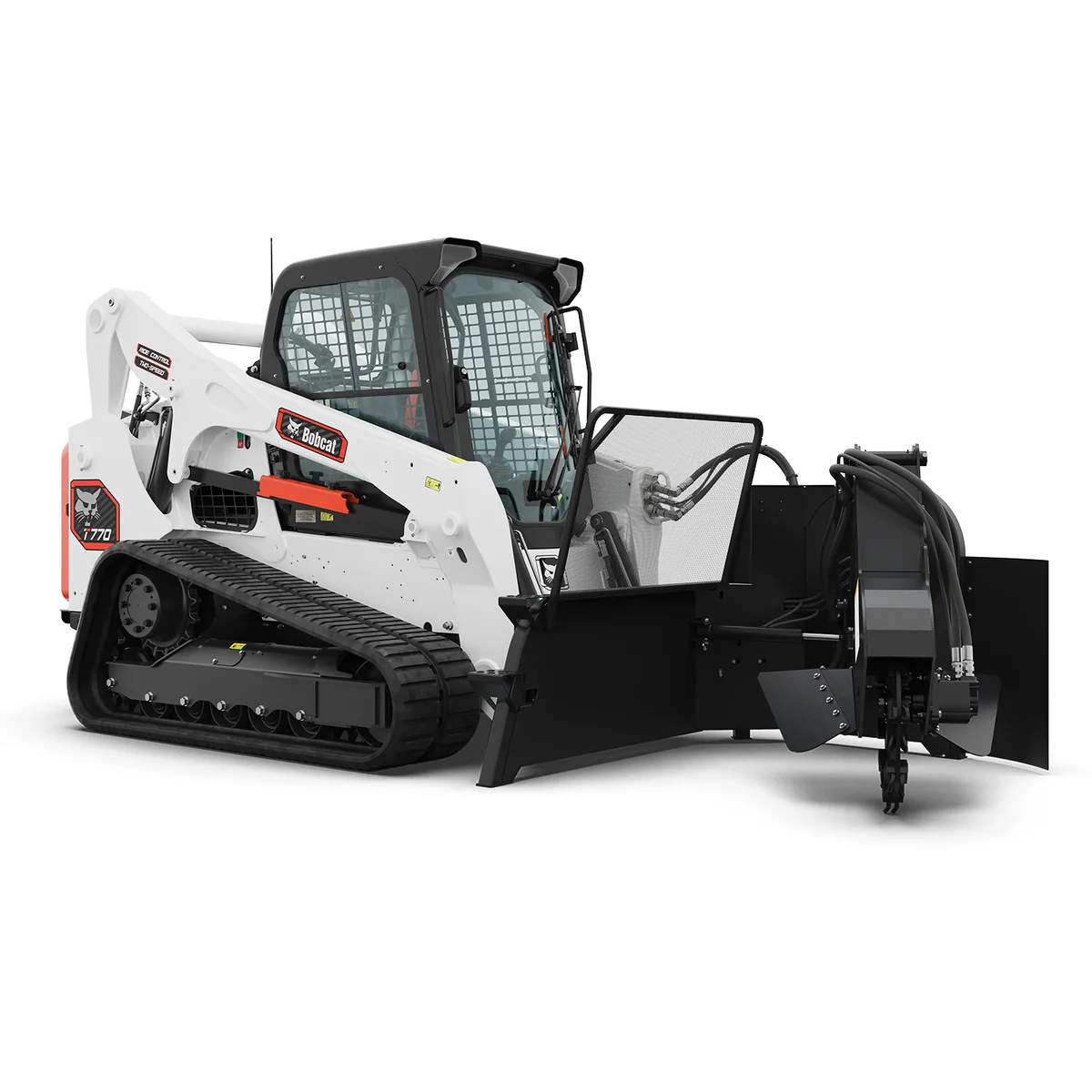

Bobcat T770 Compact Track Loader
The Bobcat® T770 Compact Track Loader is engineered to deliver industry-leading lifting capabilities and unmatched breakout forces. Powered by a robust 92-hp Tier 4 engine that requires no Diesel Particulate Filter (DPF), this machine eliminates downtime caused by DPF regeneration. With its 11-foot vertical lift path, the T770 is the ultimate jobsite partner for loading high-sided trucks, hoppers, and mixers, or stacking heavy pallets with absolute confidence.
Key Features & Performance Advantages
- Vertical Lift Path: Optimized for material handling, providing maximum reach at full lift height for efficient truck loading.
- Non-DPF Bobcat Engine: High-performance Tier 4 diesel engine engineered to simplify routine maintenance and reduce long-term operational costs.
- Premium Hydraulic Options: Supports high-flow attachment performance up to 36.6 gpm, allowing you to operate heavy-duty attachments like wood mulchers, trenchers, and cold planers.
- Enhanced Undercarriage & Traction: Low ground pressure rubber tracks allow you to work efficiently in wet, muddy, or sandy conditions while minimizing damage to established turf.
- Operator Comfort: Designed with an optional fully enclosed cab, ergonomic controls, clear deluxe digital displays, and optional automatic ride control to reduce material spillage.
Technical Specifications
Engine
| Engine Cooling |
Liquid |
| Engine Fuel |
Diesel |
| Horsepower |
92 hp |
| Emissions Tier (EPA) |
Tier 4 |
| Turbocharged Engine |
Optional / Yes |
Performance
| Rated Operating Capacity (ISO) |
3,475 lb |
| Operating Capacity (50% of Tip) |
4,960 lb |
| Tipping Load |
9,929 lb |
| Operating Weight |
10,515 lb |
| Travel Speed |
6.0 mph (6.6 mph standard) |
| Travel Speed (2-Speed Option) |
9.3 mph (10.7 mph high range) |
| Ground Pressure (Rubber Tracks) |
4.2 psi |
Hydraulic System
| System Relief @ Quick Couplers |
3,500 psi |
| Auxiliary Standard Flow |
23 gal/min |
| Auxiliary High Flow (Optional) |
36.6 gal/min |
Dimensions
| Length with Standard Bucket |
141.6 in |
| Length Without Attachment |
114.3 in |
| Overall Width |
78 in |
| Width (With Bucket) |
80 in |
| Overall Height (to Top of Cab) |
81.3 in |
| Height to Bucket Hinge Pin |
132 in |
| Reach @ Maximum Height |
33.6 in |
| Turning Radius |
88 in |
| Length of Track on Ground |
63.7 in |
| Track Width |
17.7 in |
Capacities
